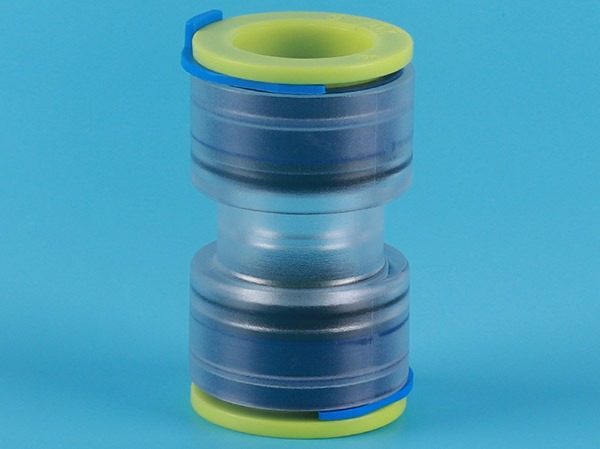

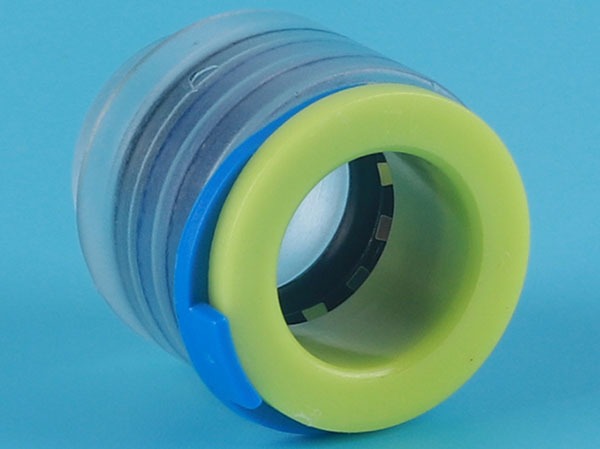

规格尺寸 Specifications and dimensions
规 格 Specification | 管外径 Pipe OD/ID | 管外径 Pipe OD/ID | 电缆阻塞范围 Cable blocking rang |
ERGAS05 | 5 | 5 | |
ERGAS06 | 6 | 6 | |
ERGAS07 | 7 | 7 | |
ERGAS08 | 8 | 8 | |
ERGAS10 | 10 | 10 | |
ERGAS12 | 12 | 12 | |
ERGAS14 | 14 | 14 | |
ERGAS16 | 16 | 16 | |
ERGAS18 | 18 | 18 | |
ERGAS20 | 20 | 20 |
外形尺寸 Overall dimensions
规 格 Specifications | DI | D2 | A1 | A2 | B | L |
ERGAS05 | 5 | 5 | 13.5±0.2 | 13.5±0.2 | 2.5±0.12 | 44±0.5 |
| ERGAS06 | 6 | 6 | 13.5±0.2 | 13.5±0.2 | 2.5±0.12 | 44±0.5 |
ERGAS07 | 7 | 7 | 15.2±0.2 | 15.2±0.2 | 4.5±0.12 | 50.5±0.5 |
ERGAS08 | 8 | 8 | 15.2±0.2 | 15.2±0.2 | 4.5±0.12 | 50.5±0.5 |
ERGAS10 | 10 | 10 | 17.5±0.2 | 17.5±0.2 | 8±0.12 | 59.5±0.5 |
ERGAS12 | 12 | 12 | 21.5±0.2 | 21.5±0.2 | 8±0.12 | 64.5±0.5 |
ERGAS14 | 14 | 14 | 23.5±0.2 | 23.5±0.2 | 10±0.12 | 69.5±0.5 |
ERGAS16 | 16 | 16 | 25.3±0.2 | 25.3±0.2 | 10±0.12 | 73.5±0.5 |
ERGAS18 | 18 | 18 | 32.7±0.3 | 32.7±0.3 | 12±0.12 | 76.5±0.5 |
ERGAS20 | 20 | 20 | 32.7±0.3 | 32.7±0.3 | 13±0.12 | 76.5±0.5 |
